Description

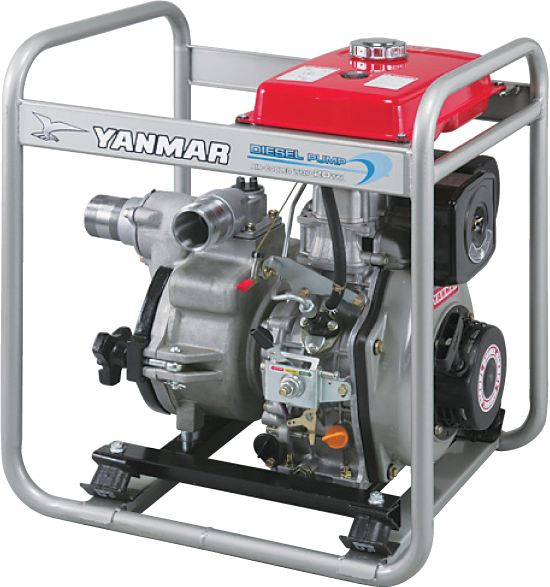

Yanmar L70W diesel engine powered 2″ trash pump with manual recoil start.

YANMAR Diesel-powered, portable, high volume, self-priming trash pumps come standard with a cast iron impeller to resist abrasion. They feature one tool serviceability for easy cleanout. All pumps feature an aluminum housing, cast iron wear parts, built-in check valve, suction strainer and painted heavy-duty steel roll frame. The pumps also feature heavy-duty cast iron flanges with male NPT threads. The flanges can be rotated in 90-degree increments and come with an easy access fill plug on the discharge.

KEY FEATURES

• Cast aluminum with cast iron wear parts
• Silicone carbide / viton mechanical seal
• EPDM / EPR O-Rings
• 2″, 3″, or 4″ removable male NPT suction and discharge ports
• Discharge rotates in 90 degree increments
• Easy clean out with one tool serviceability
• Maximum solids handling up to 1-1/4″
• Maximum flow up to 460 GPM
• Maximum head up to 110 ft
• Self priming to 26 ft
• Optional Wheel Kit and Hose Kit available

SPECIFICATIONS




• MODEL – YDP20TW-4
• Engine Family – L70W
• Regulation – Final Tier 4
• Cylinders – 1
• Bore x Stroke (mm) – 78 x 67
• Displacement (L / IN3) – 0.320 / 19.5
• Combustion Type – Direct Injection
• Aspration – Natural
• Gross Intermittent Power (kW) – 4.8
• Rated Speed – 3600
• Starting System – Recoil
• Governor Type – Mechanical
• Pump Max Flow Rate (LPM / GPM) – 950 / 250
• Pump Max Lifting Head (M/FT)(M/FT) – 34 / 110
• Length (in/mm) – 31 / 787.4
• Width (in/mm) – 22.5 / 571.5
• Height (in/mm) 23.6 / 599.4
