Description

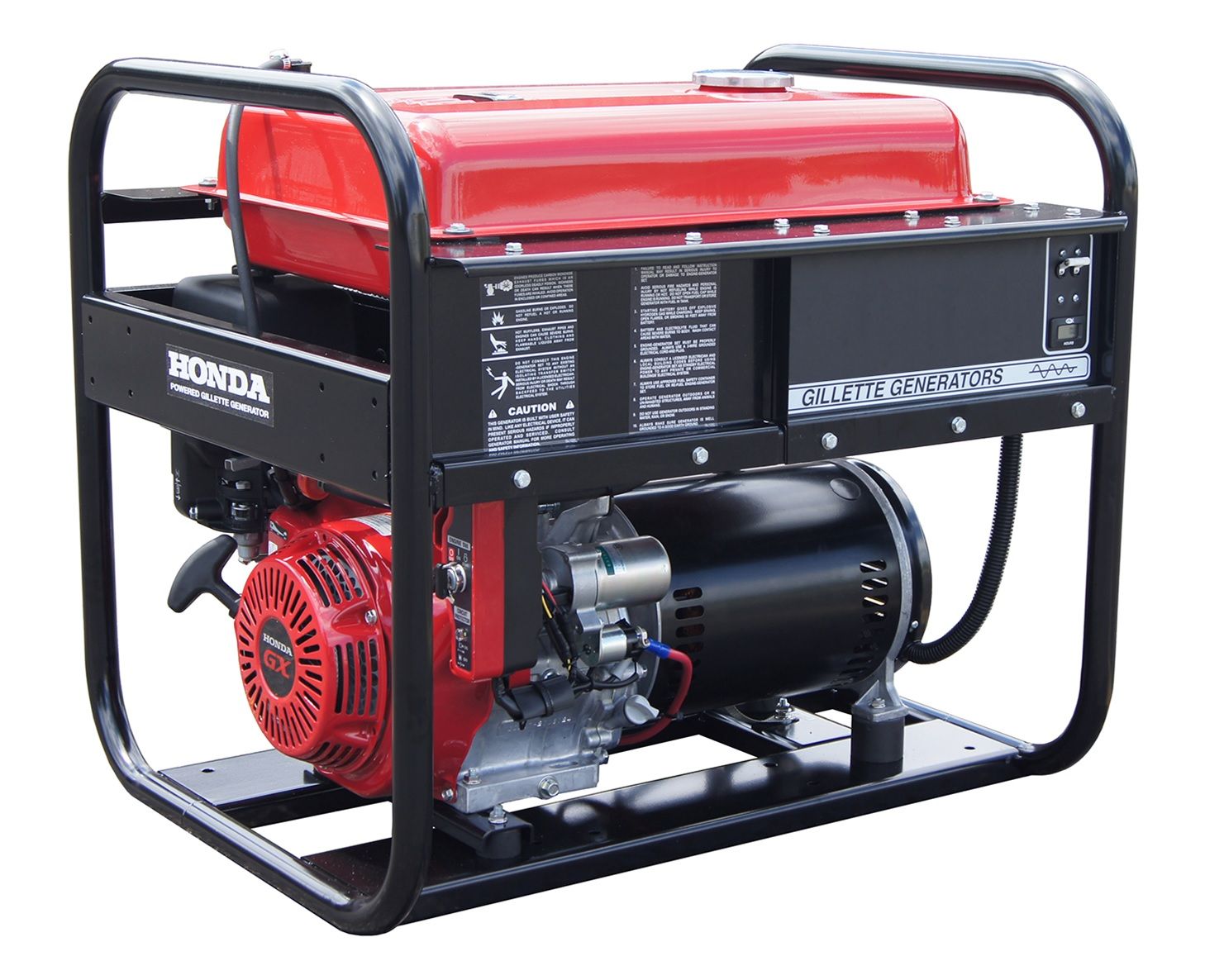

Gillette Portable 3 Phase Generator 5500 Watt
Gillette Portable 3-Phase Generator – GPE-75EH-3-2, 5500 Watt, 120/208 Volt, Honda, Electric Start
- Powered by the Honda GX390, OHV, 13 horsepower, 390cc electric start and rope recoil, gas engine
- 6,000 watts of surge and 5,500 watts of continuous power
- Total Harmonic Distortion is 6% or less
- New improved ‘KLEEN POWER” design
- Control panel includes output terminals and circuit breakers
- Voltage, Amperage & Wiring Configuration:
- 120/208 Volt, 3-phase, 60 Hz.
- Continuous: 18.0 amps @ 208 Volt, 3-Phase, 60 Hz
- 3 Hots, Neutral (Bonded), Ground
- 120 Volt loads are available and must be balanced. The generator must be connected up by a licensed electrician.
- Unbalanced loads or incorrect wiring and/or installation resulting in machine damage will void warranty and prevent return and/or refund.
- 120/208 Volt, 3-phase, 60 Hz.
The Gillette Heavy Duty GPE-75EH-3-2 is a contractor grade Honda powered generator with 5,500 watts of continuous power. Features an 8.0-gallon metal fuel tank with fuel gauge, twist-cap and slosh valve, which provides this unit with enough gas to run for 8.4 hours @ 75 % load before needing to re-fuel.
