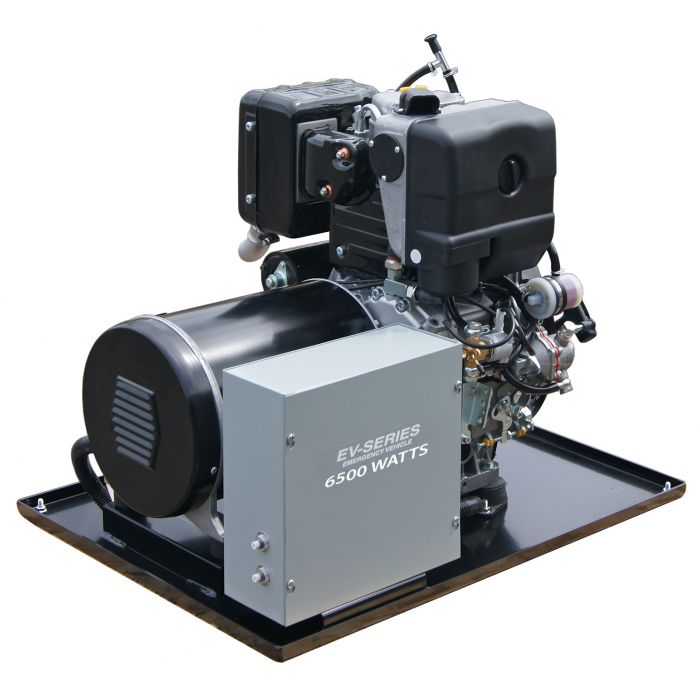

Gillette Vehicle Mount Diesel Generator 10 HP Kohler 3 Phase
Gillette Vehicle Mount Diesel Generator – EVTD-65EK-3-2, 6 kW, 10 HP Kohler, 3-Phase, 120/208 Volt
- Equipped with an Air-Cooled 10HP Electric Start Kohler KD420, 3600 RPM Diesel Engine
- 6.0 kW Continuous output, 6.5 kW Surge output
- Voltage, Amperage & Wiring Configuration:
- 208 volt, 3-phase, 60 Hz
- Continuous: 18 Amps @ 208 Volt, 3-Phase, 60 Hz
- 3 Hots, Neutral (Bonded), Ground
- 120 Volt loads are available and must be balanced. The generator must be connected up by a licensed electrician.
- Unbalanced loads or incorrect wiring and/or installation resulting in machine damage will void warranty and prevent return and/or refund.
- 208 volt, 3-phase, 60 Hz
- Low oil shutdown is standard
- No fuel tank (for ease in connecting to your own fuel source via the included fuel pump, shipped loose)
- Terminal strip (lugs) for full power take-off
- Push Button Circuit Breakers are standard
- Brushless alternator
- 5% Voltage and Frequency regulation
- Total Harmonic (Waveform) Distortion or TDH of 7%
- Motor starting of a 1.5HP, Code G electric induction motor
Optional Gillette Remote Start Vehicle Mount (Installed) – G4
- There is an optional wired remote start available for this Kohler engine-equipped Gillette generator. This feature allows the start/stop control panel to be relocated away from the engine, enabling the user to operate it from a distance.
- For example, the generator can be installed in a box truck, with the control panel mounted in the cab. This setup allows the driver to start and stop the generator from the driver’s seat.
- This remote-mounted start/stop capability is a unique feature made possible by the integration of the Kohler diesel engine with Gillette’s generator platform. Unlike most other generator manufacturers, which often require aftermarket solutions or offer limited remote access, Gillette’s factory-installed G4 option provides a clean, reliable, and fully supported solution designed specifically for vehicle-mounted and hard-to-access installations.
- This option can be purchased from the link below. Please specify the required cable length. If you have any questions, feel free to contact us at to discuss your application.
