Description
Used CAT 3516CHD Generator Set – 13.2kV

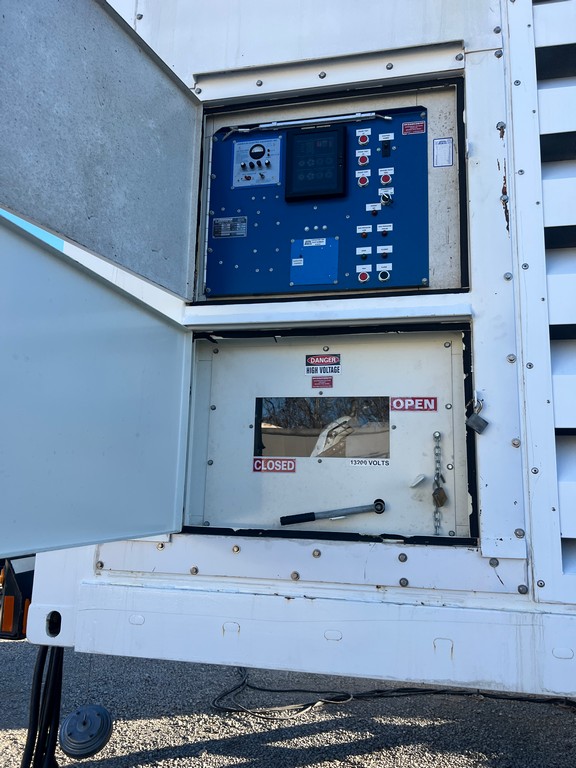

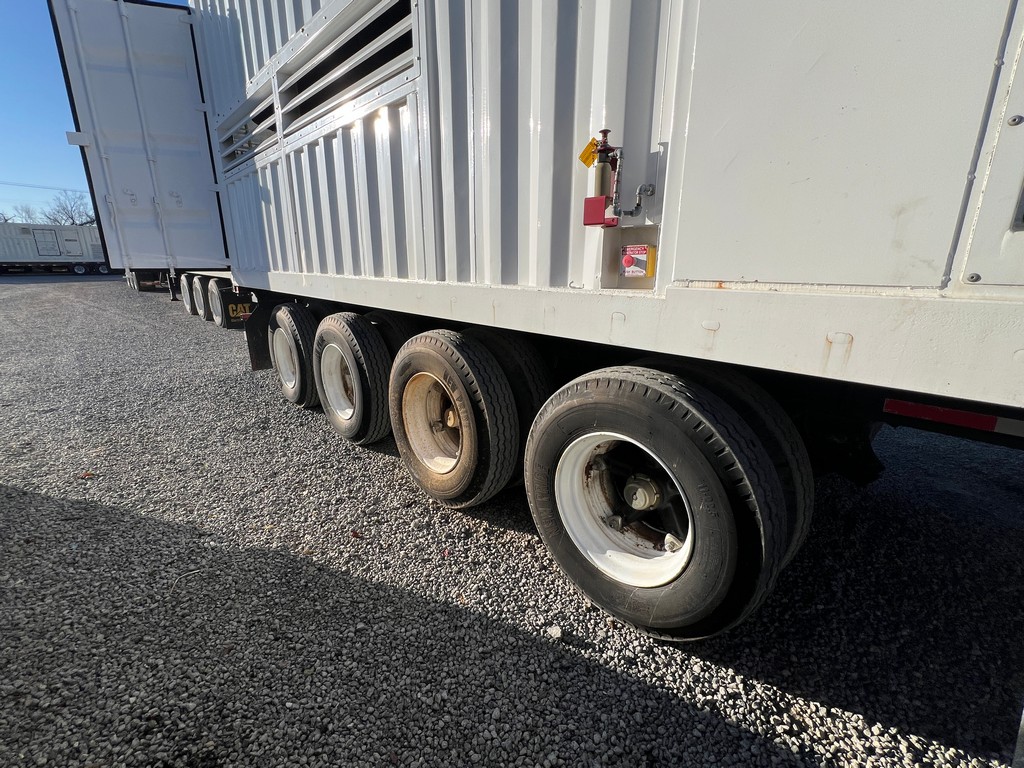

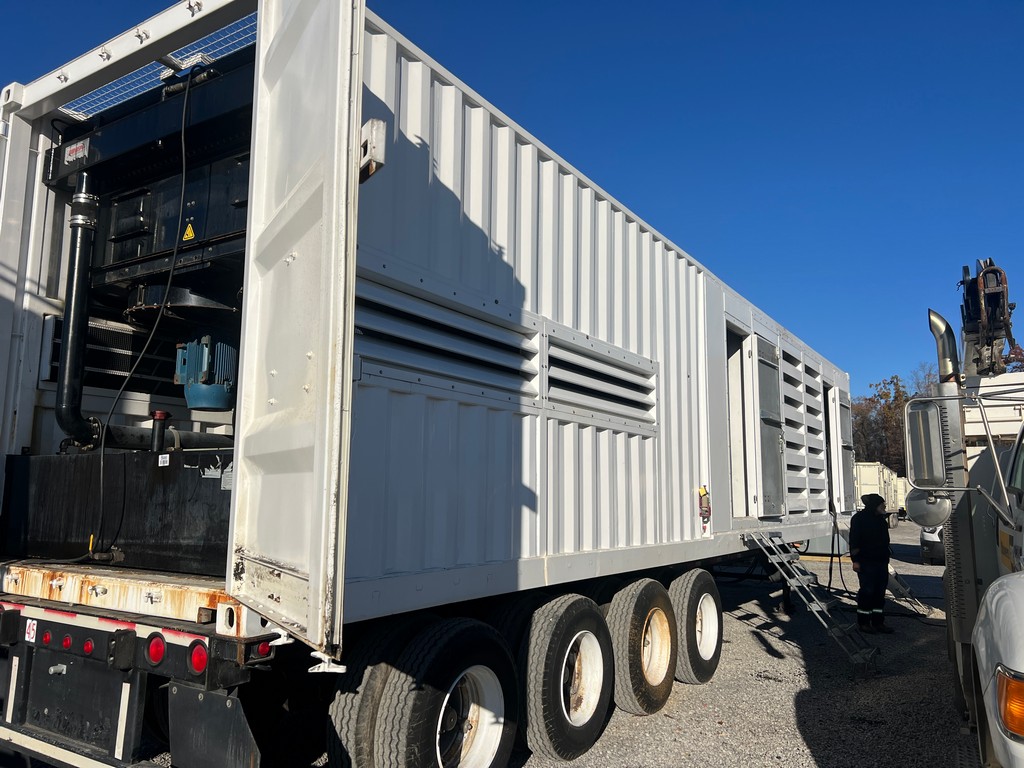

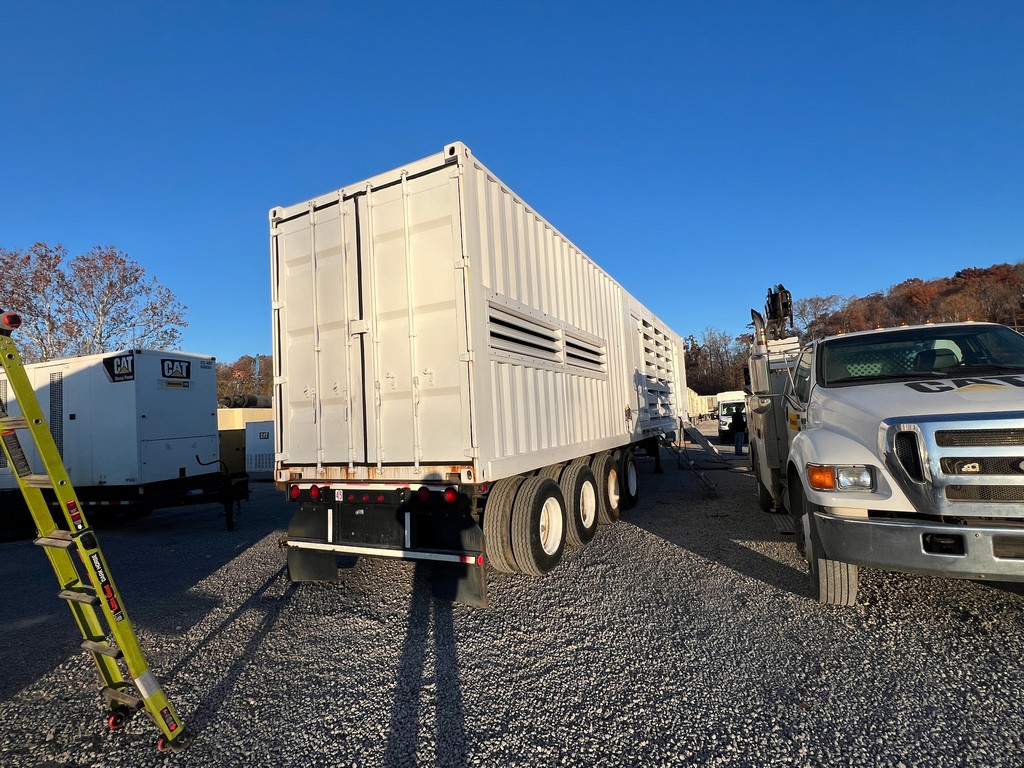

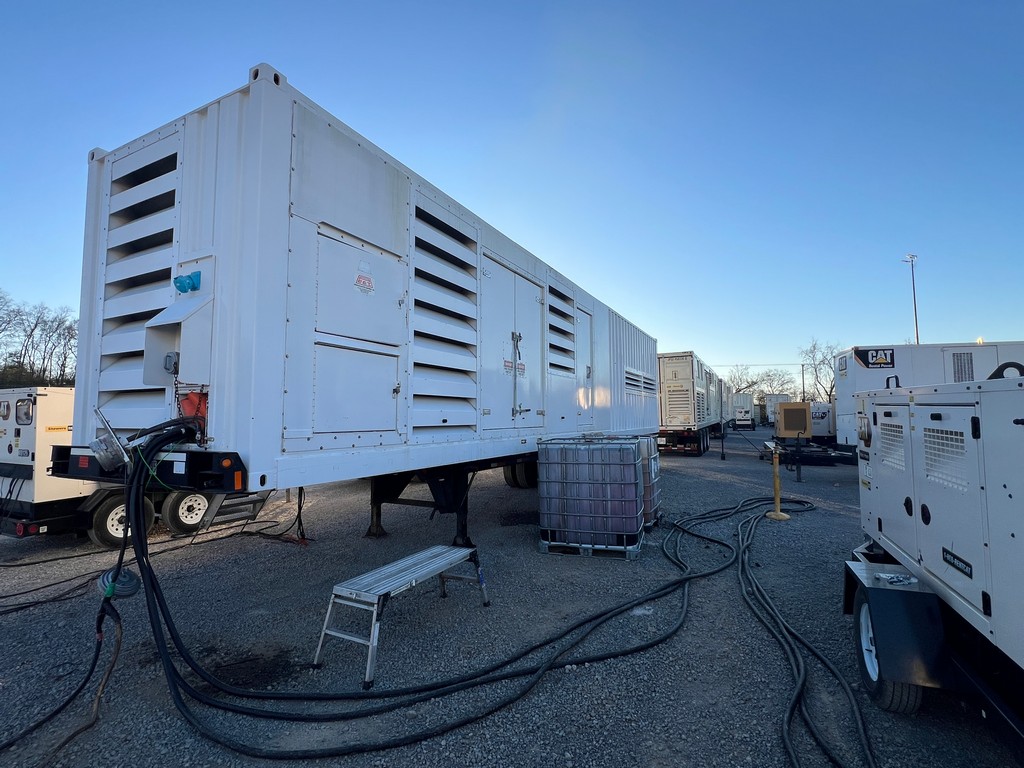

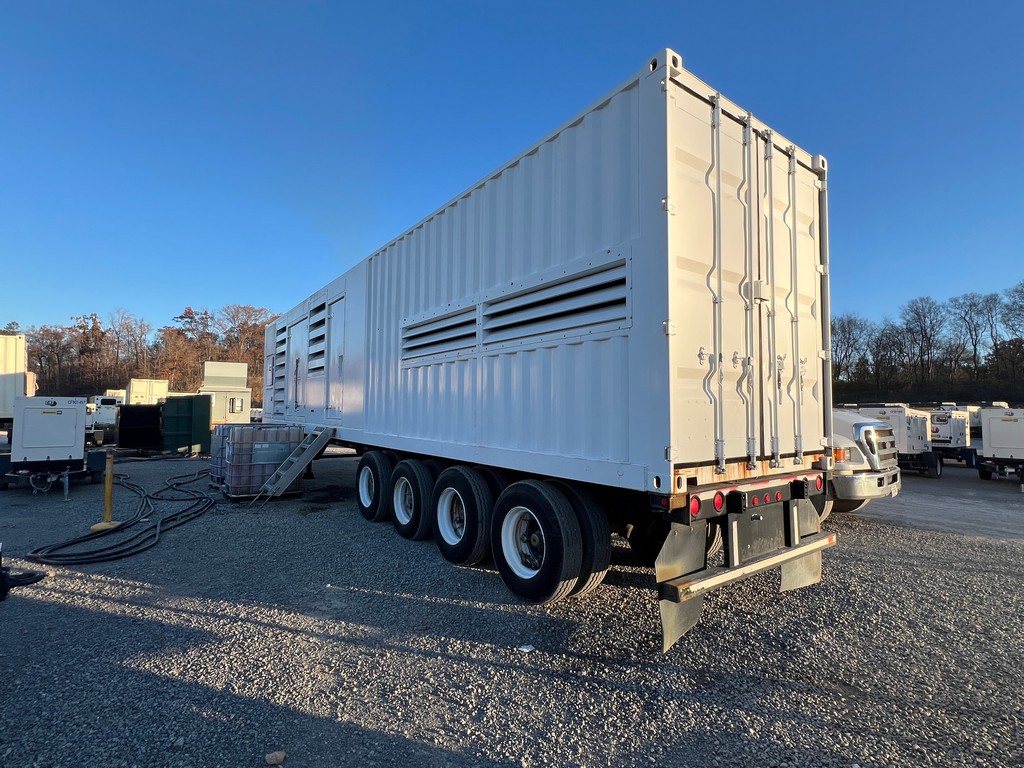

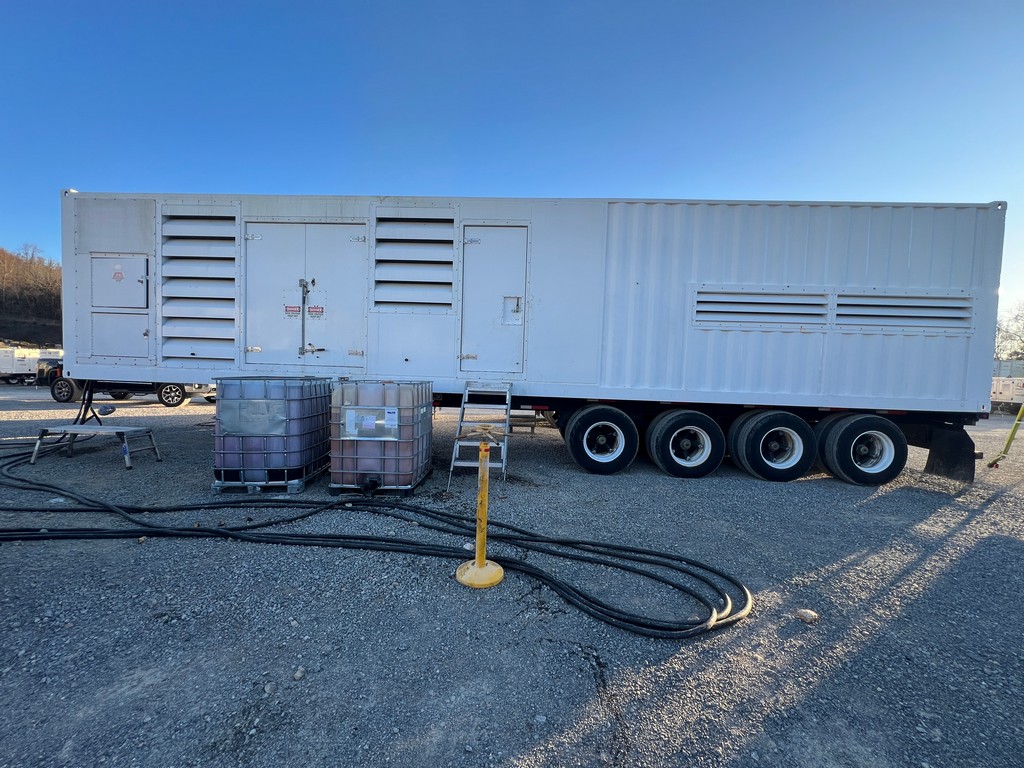

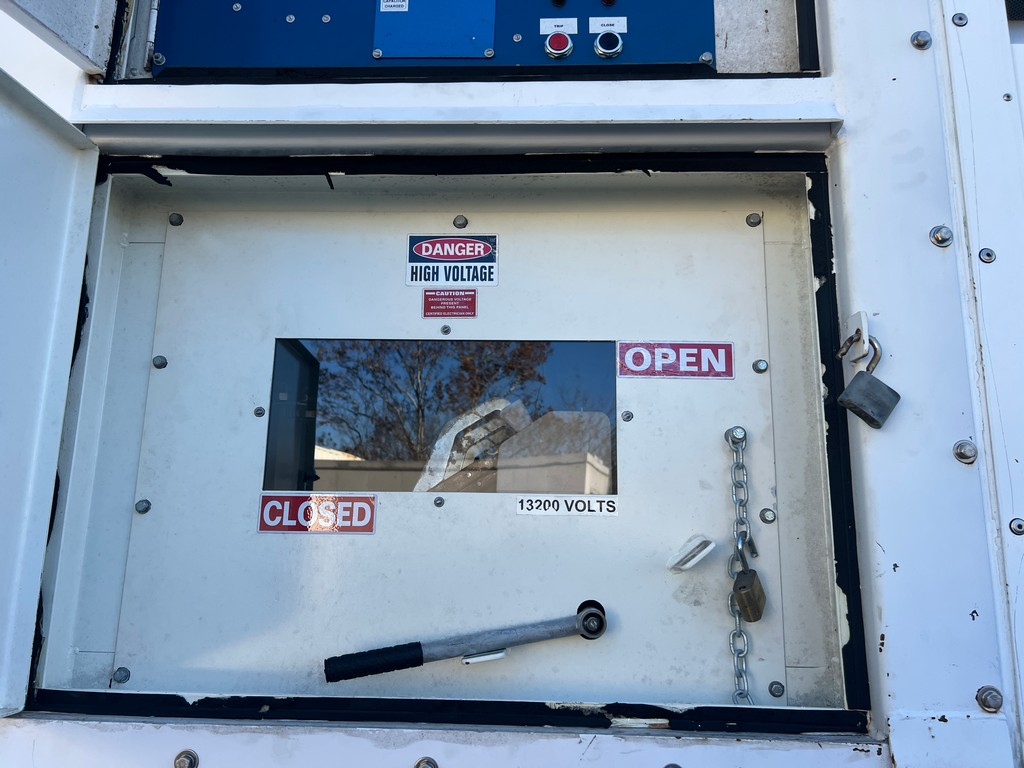

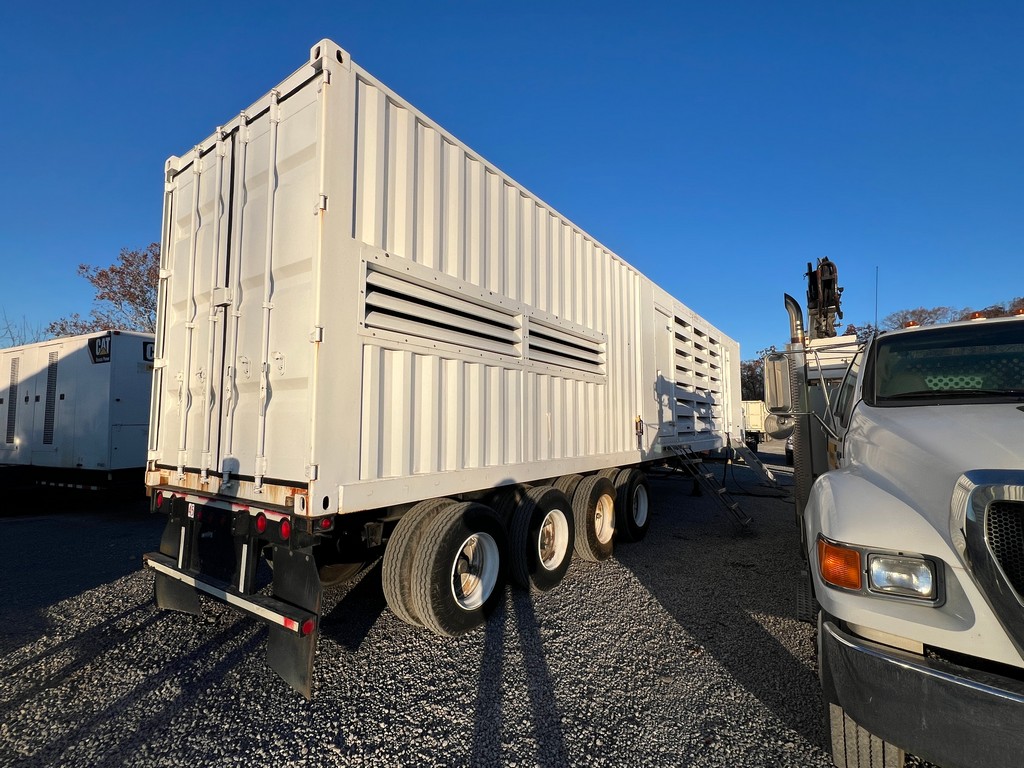

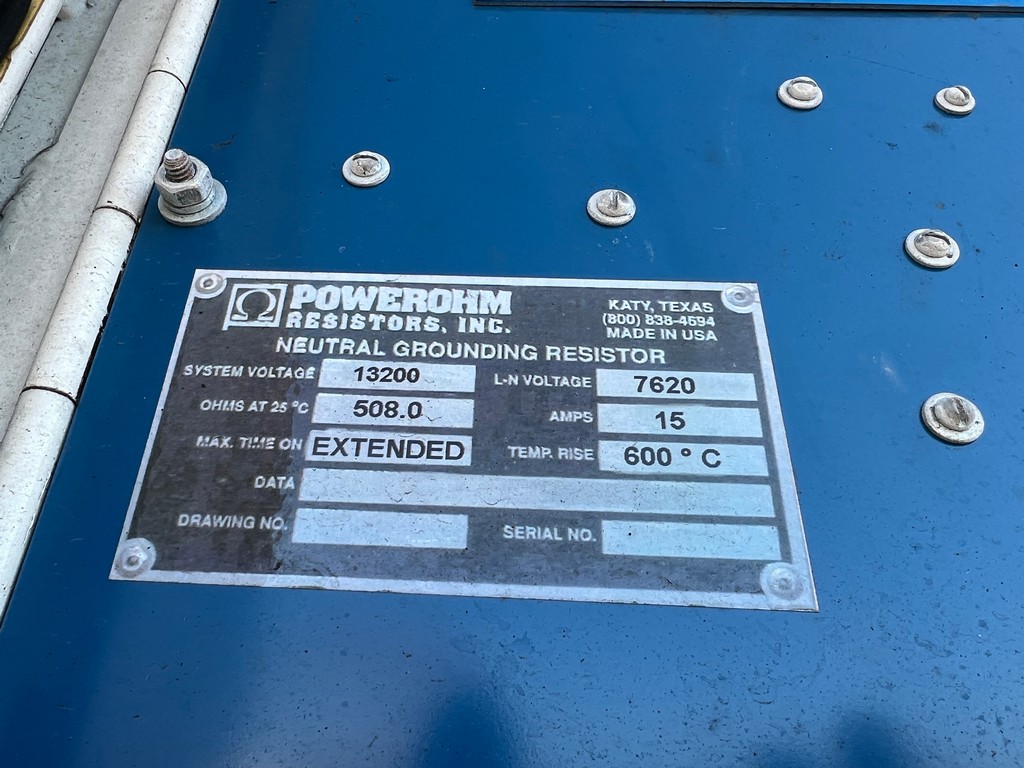

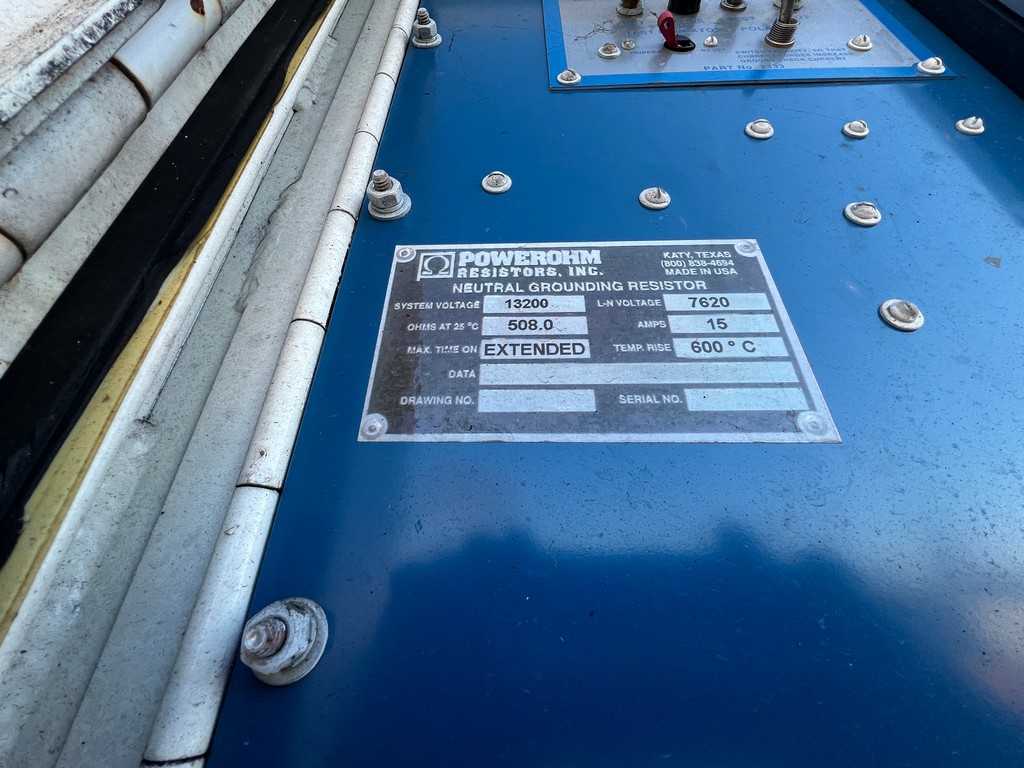

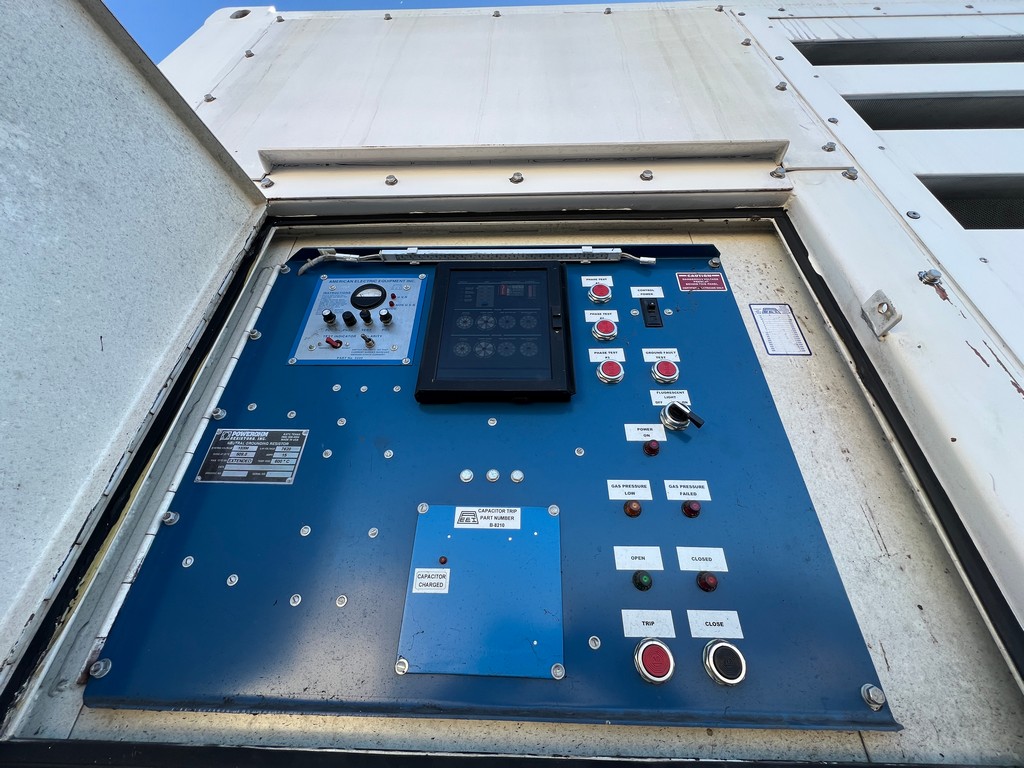

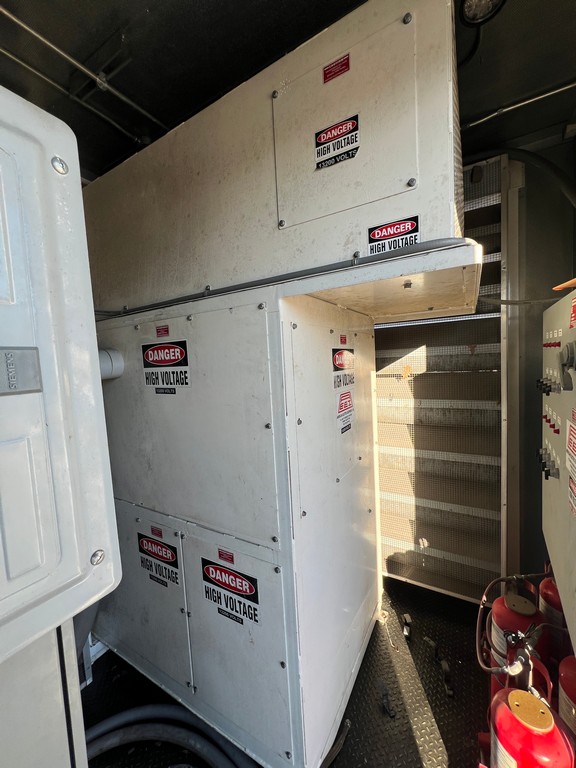

Used CAT 3516CHD Generator Set; 2008 Model – 200 Original Hours; 2500kW Standby Rated – 13.2kV; Mobile Power Module – 45′ Container; Quad Axle Trailer; Sound Attenuated; Fuel Tank; On-Board 15kV Switchgear; Neutral Ground Resistor; CAT EMCP 3.3 Controller; Tier 2 Emissions; Load Tested – Includes CAT ESC Warranty
Specifications
Generator Set:
- Manufacturer : Caterpillar
- Package Model : 3516CHD

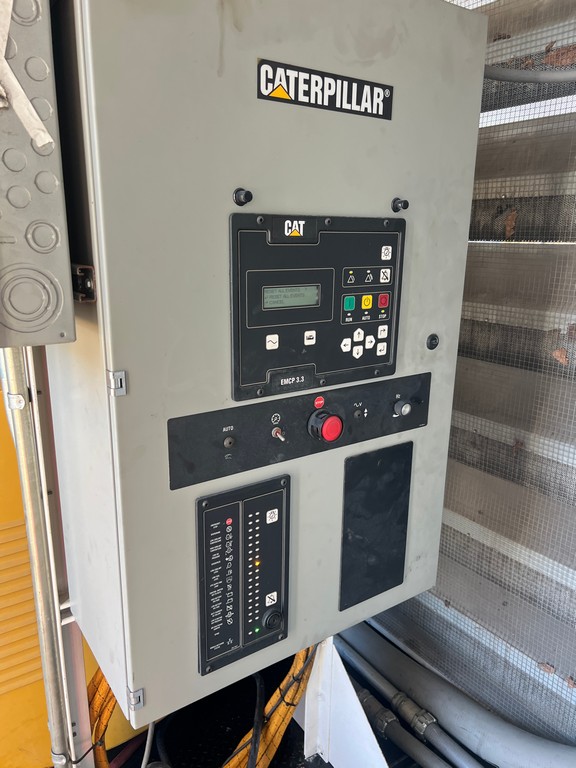

- Control Panel : EMCP 3.3
- Fuel Tank Option : Remote Fuel Tank – Double Wall
- Fuel Tank Size (G) : 1200
- Enclosure Type : Sound Attenuated Enclosure
- Trailer Type : Semi Trailer
Features:

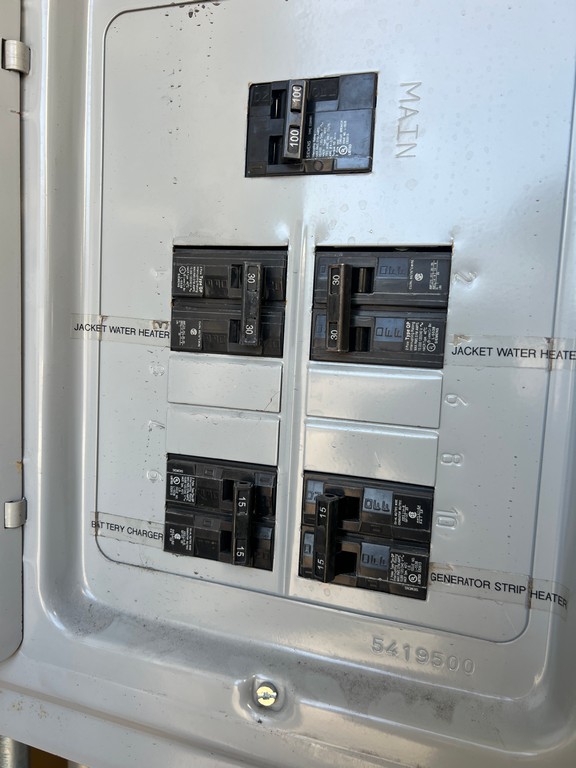

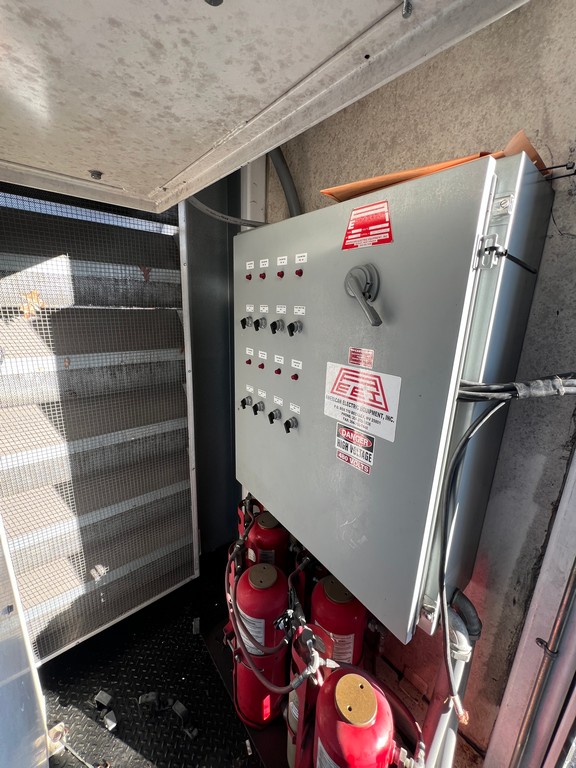

- Distribution Panel
- Shunt Trip
- UL 142 Fuel Tank

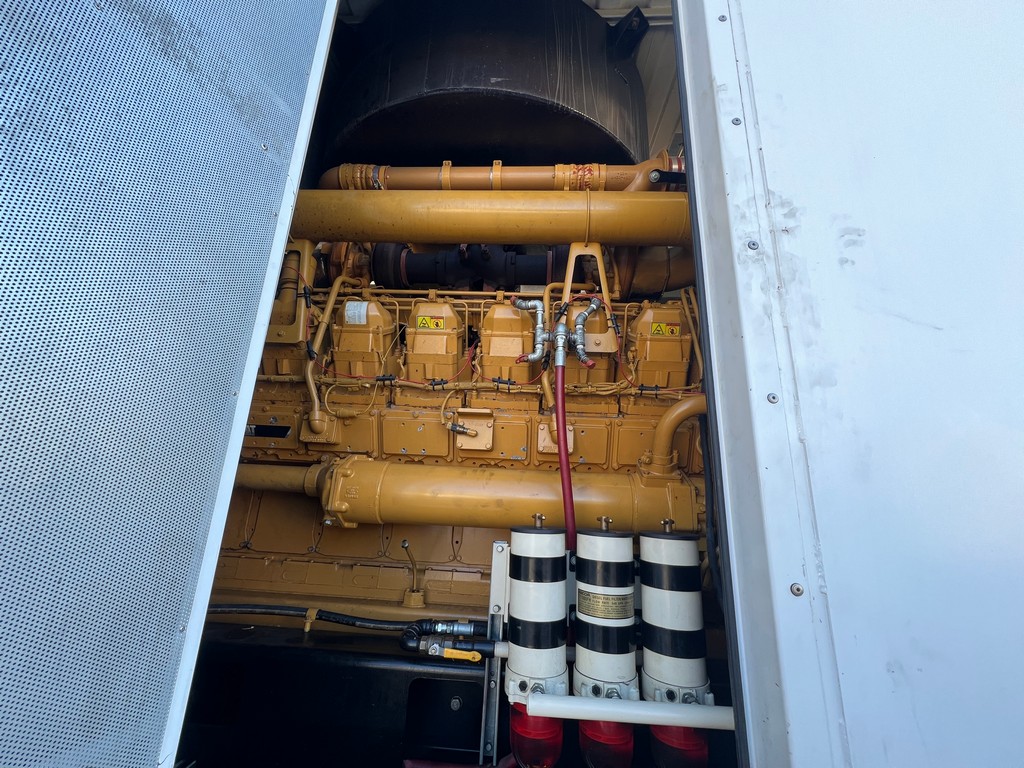

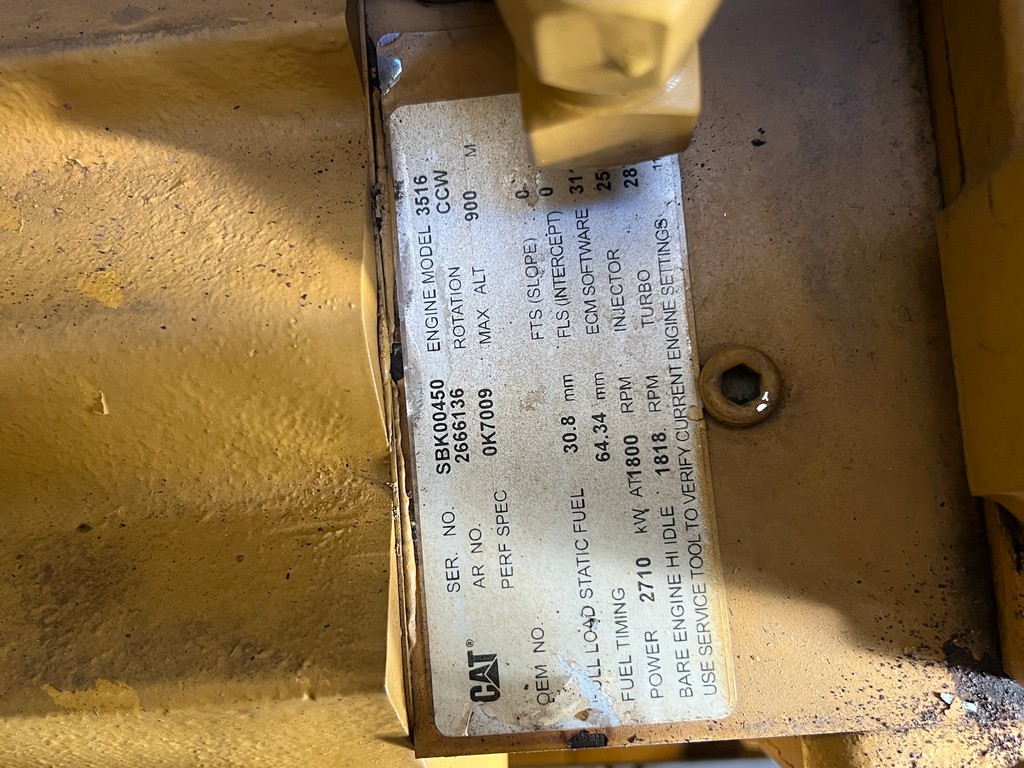

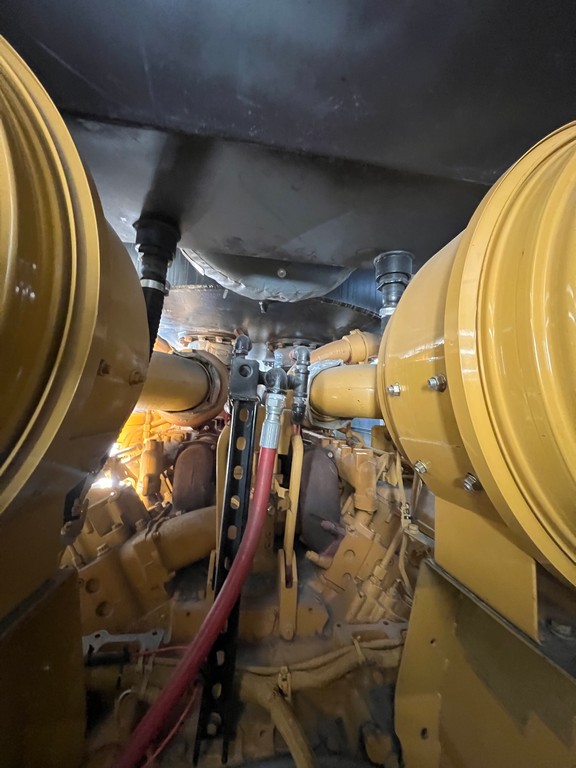

Engine:
- Manufacturer : Caterpillar
- Model : 3516CHD

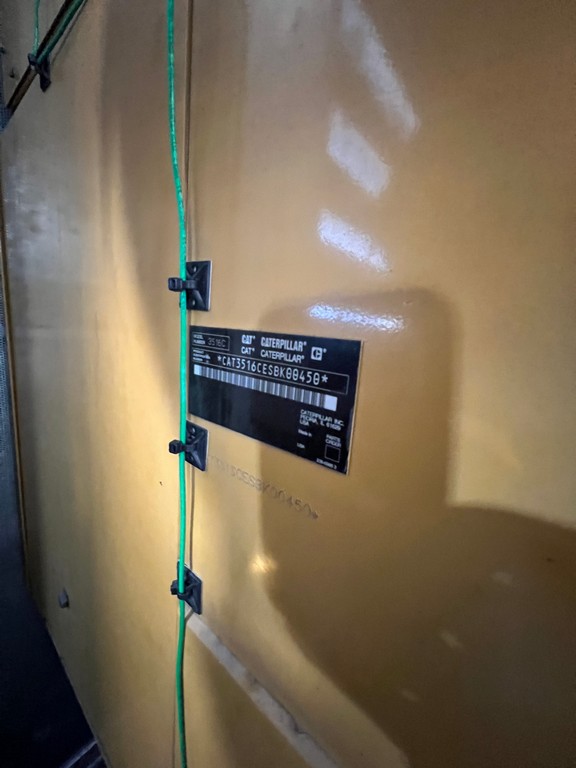

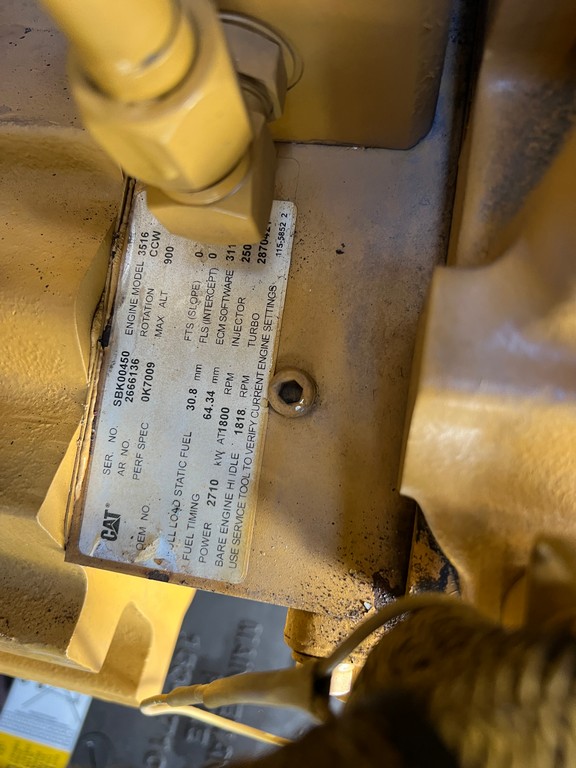

- Serial Number : SBK00450
- Arrangement/CPL : 2666136
- Rating (HP) : 3634 HP
- RPM : 1800
- Emissions Rating : Tier 2
- Governor Type : ADEM
- Starter : Electric

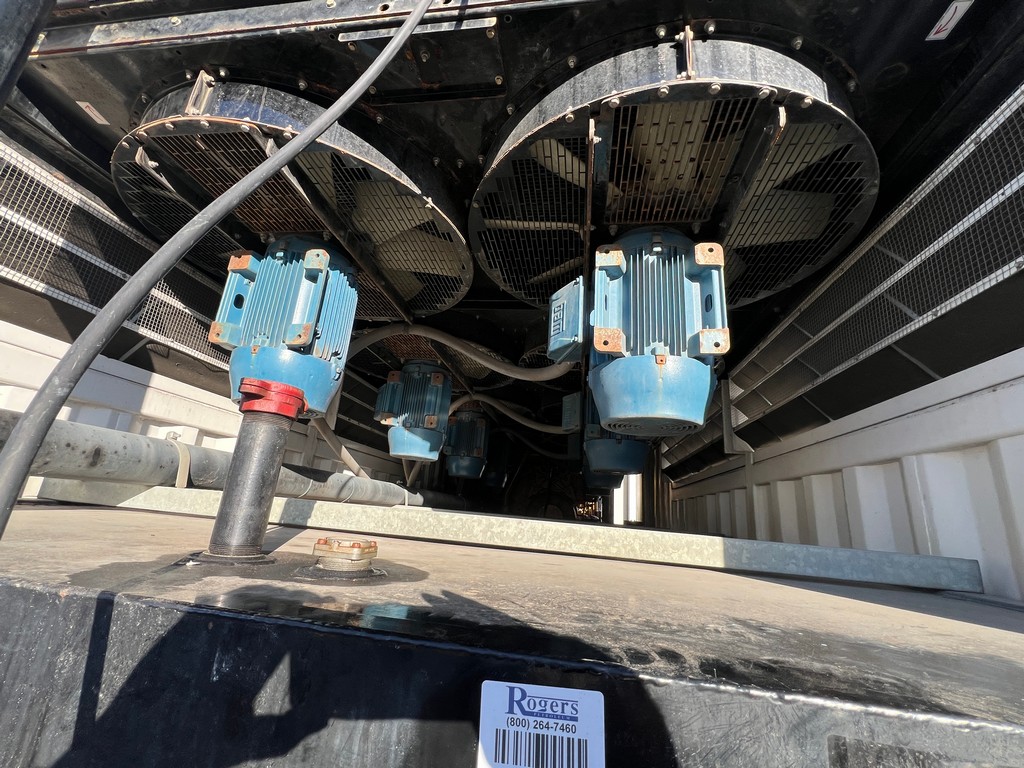

- Cooling Method : Remote Radiator

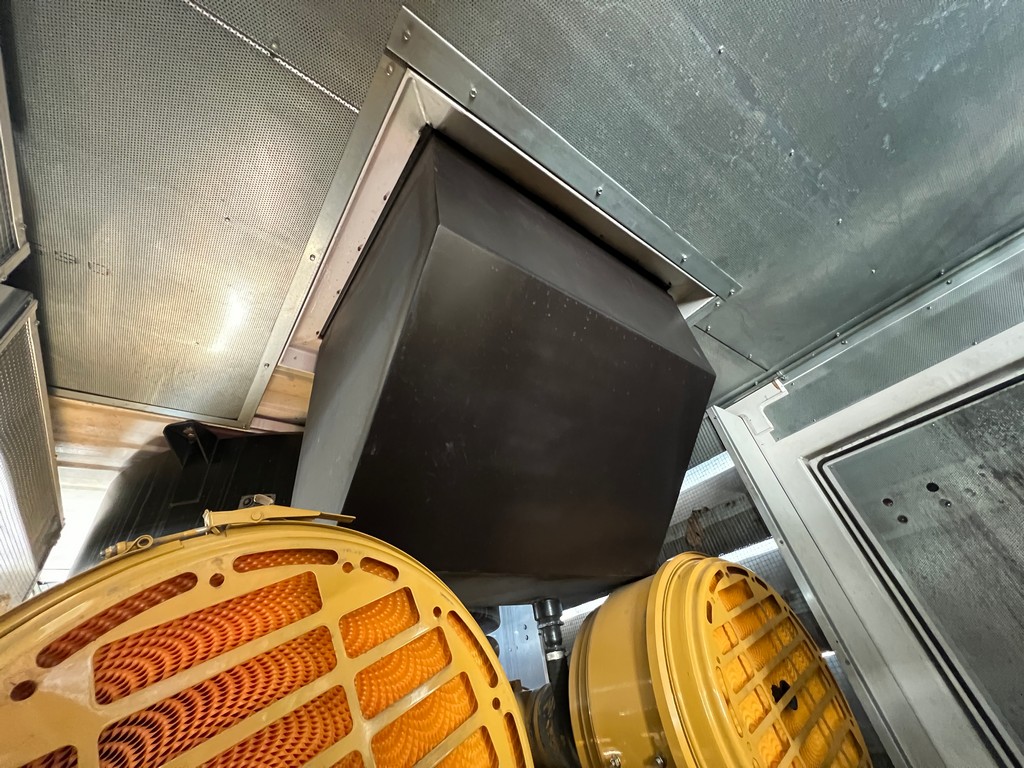

- Air Cleaner : Heavy Duty
Features:
- Jacket Water Heater
- Battery Charger
- Charging Alternator
- Fuel Water Separator
- Fuel Cooler
- Battery Rack
- Battery Cables
- Emergency Stop
- Coolant Level Sensor
- Explosion Relief Valve

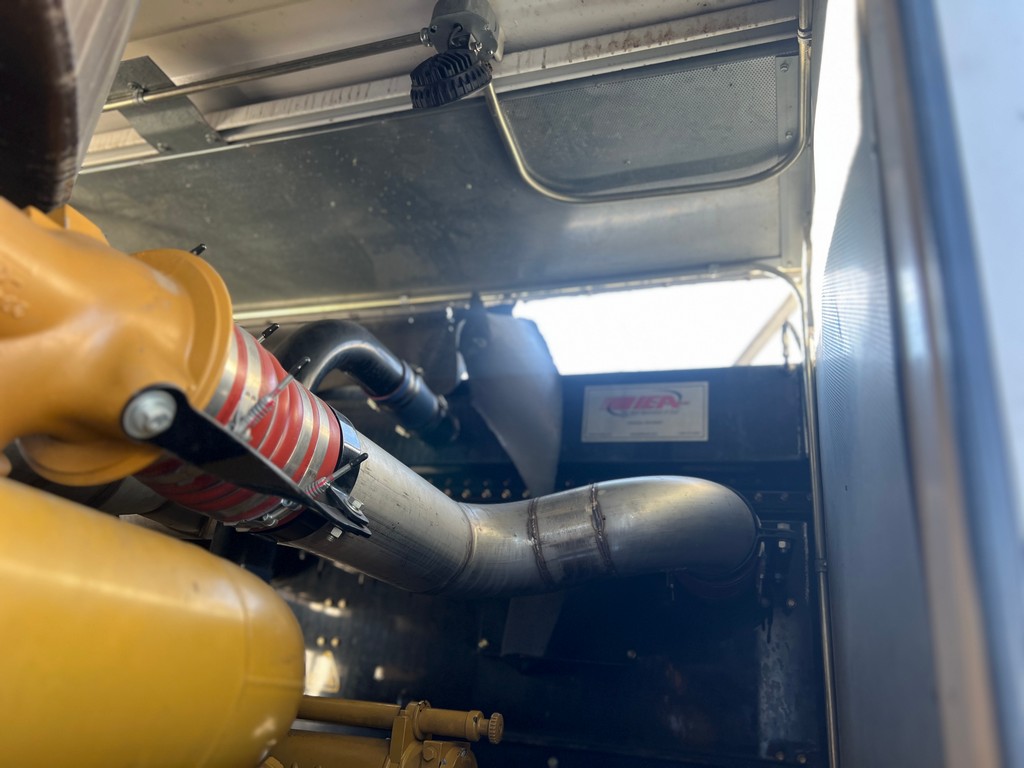

- Exhaust Silencer – Mounted

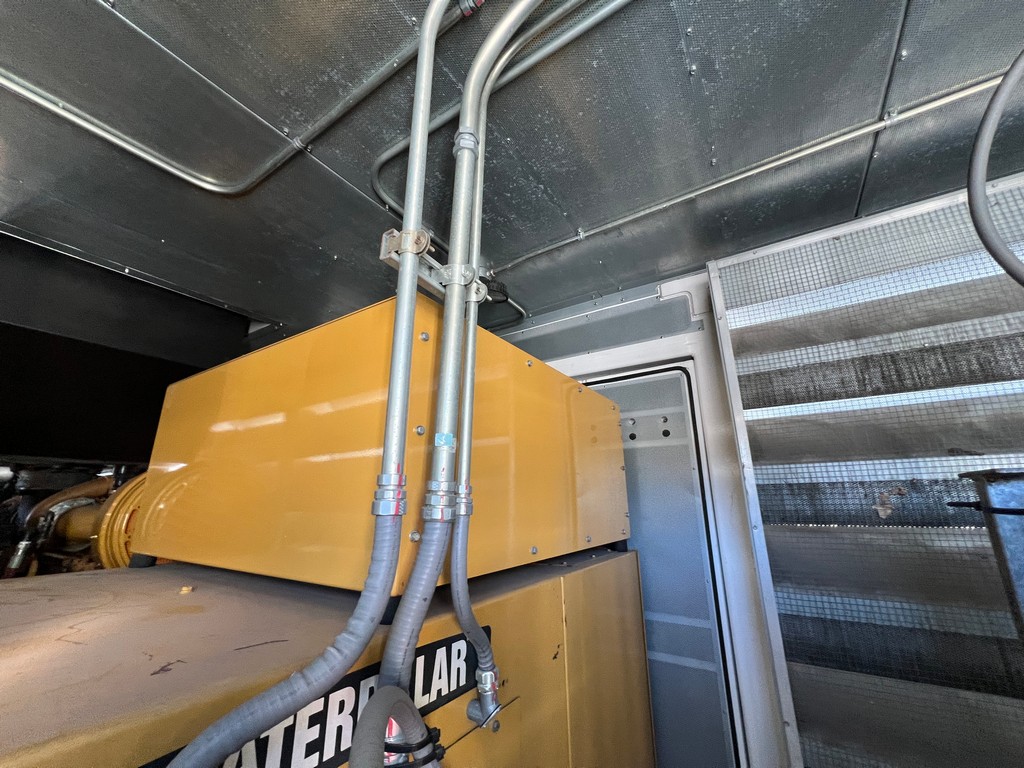

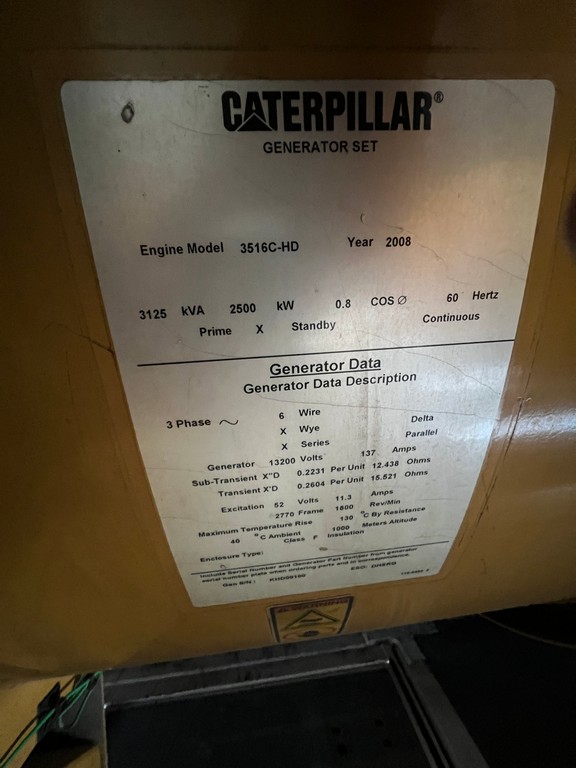

Generator End:
- Manufacturer : Caterpillar
- Package Model : SR4BHV 2770 Frame
- Serial Number : KHD00100
- Arrangement : 3111156
- kW Rating : 2500 kW
- kVA Rating : 3125
- Rating Type : Standby
- Voltage : 13200
- Power Factor : 0.8
- Frequency : 60 Hz
- Phase : Three Phase
- Leads :6
Features:
- Double Bearing
- Permanent Magnet Excitation
- Form Wound
- Space Heater
