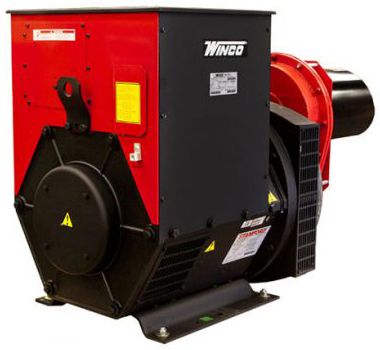

Winco Tractor Driven PTO Generator 100 kW

Winco Tractor Driven PTO Generator – W100PTOS-3, 100 kW, 1000 RPM

100,000 Watts of single phase 120-240 Volt power for your farm, agricultural, portable, and standby power needs
Single phase, 120-240 Volt power provides up to 416 Amps of power with mainline circuit breaker rating of 400 Amps
4-wire Anderson full power receptacle with complimentary plug allows you to utilize every bit of power the generator has to offer
Standard 50 Amp/120-240 Volt and 20 Amp/120 Volt plugs to access the generators power
Full power receptacle cover lip protects the receptacles from the elements
A large frequency meter provides visual feedback without leaving the seat of the tractor so you can make adjustments on the fly very easily
The generator pairs with a 200 HP tractor at 1000 RPM operating speed providing PTO power to operate within specification

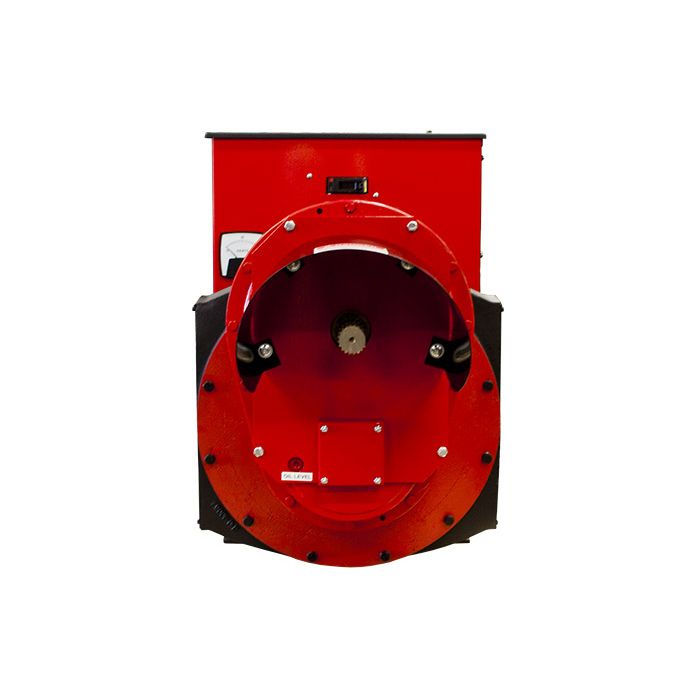

Connection friendly design uses a 1 3/4 inch 20 splined connection at the generator to connect to the tumble bar (T-bar) drive shaft (add at checkout)
100% copper windings, automatic voltage regulation, and a rotating field brushless type alternator design provides superb motor starting, lower maintenance than brush design, clean and consistent electricity, and an overall longer life for your alternator and PTO generator
Adverse farm and ranch environments are no match for Winco’s heavy duty cast-iron gear case, maintenance free bearings, helical gears, and protective steel PTO guard shield
Optional PTO drive shaft, PTO trailer kit, and manual transfer switches available
3 Year commercial warranty in standby applications of 50 hours per month or less.
