Description

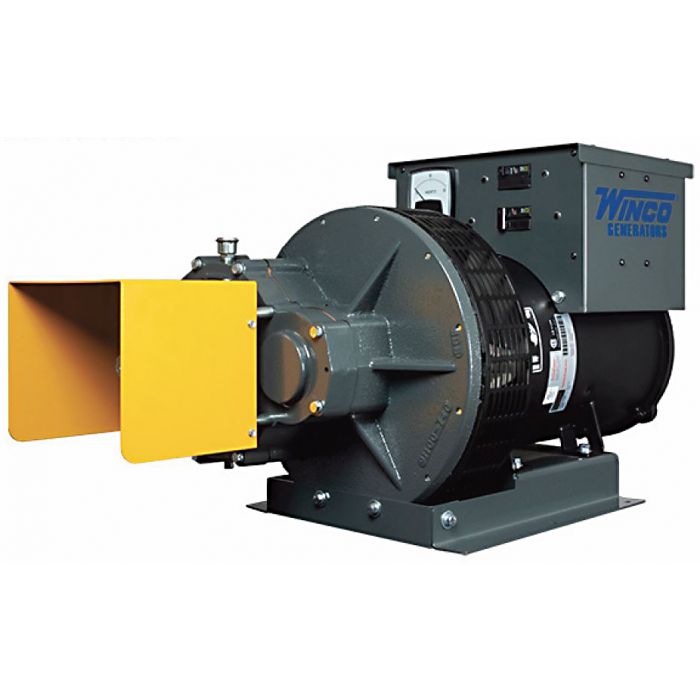

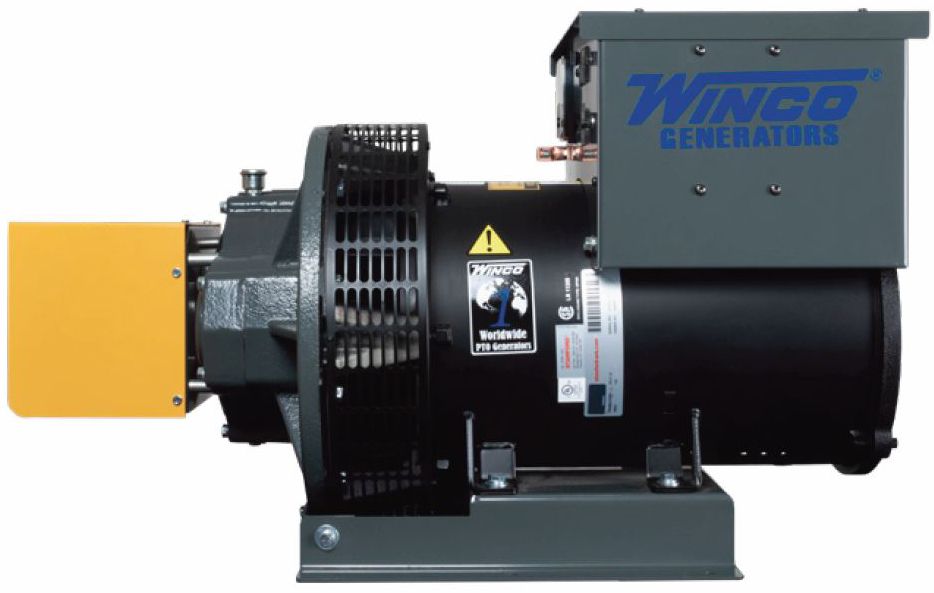

Winco Tractor Driven PTO Generator 3-Phase 120-208 Volt 26.9 kW Continuous
Winco Tractor Driven PTO Generator – 30PTOC4-04, 26.9 kW Continuous, 540 RPM, 3-Phase, 120-208 Volt
- 26,900 Continuous Watts; 31,600 Watts Standby
- Pairs with a 60 HP tractor engine, providing PTO power to operate within specification.

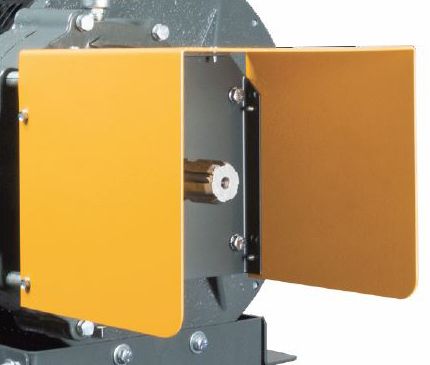

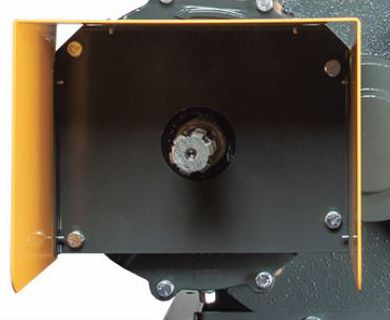

- Connection friendly design uses a 1 3/8 inch six spline connection at the generator to connect to the tumble bar (T-bar) drive shaft (add at checkout)
- 100% copper windings, rotating field brushless type design, and the Automatic Voltage Regulator (AVR) with auxiliary winding provide Winco PTO generator owners stronger motor starting capacity and a longer operating life
- Heavy duty bar and ring shell, maintenance free bearings, rugged cast iron gear casing, helical gears, and a protective steel PTO guard shield are but a few of the Winco quality attributes loyal operators count on for reliability, durability, and return on investment
- Rodent protection as just about every farm environment is home to many critters just looking for trouble
- Ground lug for protection when storms hit
- Line bored as mated pair to within 3/1000th of an inch
- Optional 1000 RPM gear case upgrade, PTO drive shaft, PTO trailer kit, and manual transfer switches available
- Operator friendly large voltmeter makes monitoring and adjusting power from the tractor seat simple
- Full power Anderson receptacle mounted on generator and plug (shipped with generator) makes harnessing the total potential power of the generator easy
- Convenience Receptacle Package Available:
- NEMA 5-20R (120 Volt, 1-Phase)
- NEMA 6-50R (208 Volt, 1-Phase)
- 2 Wire Plug, Provides L-L Voltage
- Anderson Full Power Plug (208 Volt, 3-Phase)
- Full power receptacle cover lip protects the receptacles from the elements
- 3 Year Warranty standard
